At Gulf Engineering Works, we pride ourselves on delivering advanced manufacturing solutions tailored to meet the evolving demands of modern industry. With a focus on innovation, efficiency, and quality, our state-of-the-art facility is equipped with a comprehensive range of high-performance machinery designed for precision fabrication and streamlined production processes.

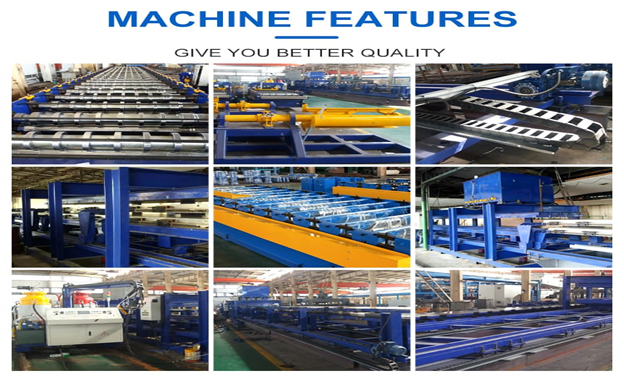

Double belt conveyor pressing machine ( conveyor 14 m to 30 m )
Automatic Bandsaw Cutting Machine
Automatic Stacking and Cooling Rack System
Double press bed ( Discontinuous line 4 m to 13 m )
Decoiler Machine with Loading car
We provide services for all PUF sandwich panel machines and also does an installation work in PUF Machines.
R&D in PUF machineries to increase productivity and avoid material wastages.
Training & Safety instructions to the operators.
| Basic Data for PU Line (Continuous / Discontinuous Line) | |
|---|---|

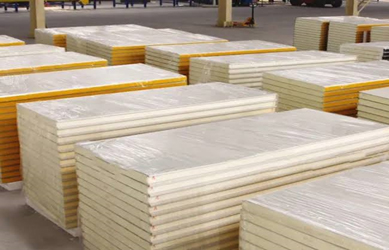

| Sandwich Panel | Metal + PU/PIR + Metal |
| Material | PPGL /PPGI |
| Coil Thickness | 0.3 mm – 0.7 mm |
| Coil Width | 1220 mm / 1070 mm (As per panel design) |
| Coil Weight | Max. 5 Tons |
| Inner Diameter of the Coil | φ 508 mm |
| Line Speed | 2 – 7 m/min |
| (Real Production speed is related with the panel thickness & raw material used, please check with raw material supplier for the line speed) | |
| PU/PIR Details | |
| Thickness | 30 mm – 150 mm |
| Width | For, WP-1150 mm & CP-1000 mm |
| Length | 2.5 m – 12 m |
| Density | Min 36 Kg/m³ |
| Suggested 40 kg/m³ to 45 kg/m³ | |
