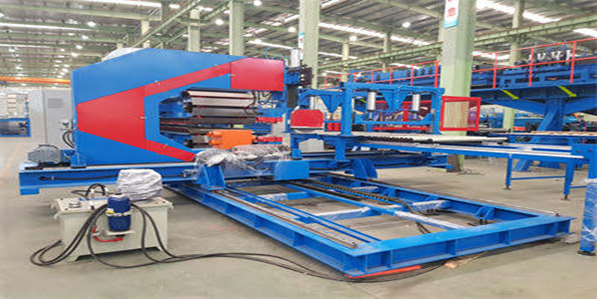

Automatic Bandsaw cutting machine:

In a PU (polyurethane) sandwich panel machine, the bandsaw cutting process is used for precisely cutting the cured panels to the desired length and shape after the foaming and curing stages. The process involves feeding the panel through a cutting system, where a band saw makes the precise cuts.

Cutting Process:

Feeding:

The cured sandwich panel is fed into the cutting machine.

Cutting:

A band saw, a continuous loop of toothed metal, cuts the panel to the required length and shape.

Fixed-Size Cutting:

The cutting specifications can be adjusted to cut panels of different lengths based on the product requirements. The machine will move forward and reverse for cutting process.

Cutting machines can move longitudinally (along the panel's length) and transversely (across the panel's width).

Material Handling:

Transfer: The cut sections are then transferred to a transfer track.

Stacking: In some systems, the panels are automatically flipped, stacked, and packaged.

Additional Features:

Dust Collection:

The cutting machine may include dust hoods and a dust collection system to manage dust created during cutting.

PLC Control:

This machines use a PLC (Programmable Logic Controller) for automated cutting control.

Automatic Length Cutting:

The cutting cycle can be initiated manually or automatically in conjunction with the main production line.

Benefits of Bandsaw Cutting:

High Precision: Bandsaws offer precise and accurate cutting.

Fast Cutting Speed: Bandsaw cutting is relatively fast.

Clean Cuts: Bandsaws can produce clean, smooth edges.

Long Blade Life: Bandsaw blades can have a long service life.

Features:

PLC Programmed band saw cutting machine with accurate cutting edges.

It cuts the minimum length of 1900 mm to maximum of customer required lengths.

Noise free environment.

Cutting speed engaged with conveyor speed by rack & pinion mechanism.

User friendly, Easy to operate and easy to understand.

Y-Axis movement of the machine is controlled by electric motor.

LHS and RHS side cut back of length 0 to 200 mm can be adjusted.
