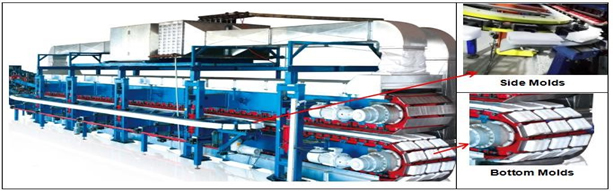

Side Mould System in PU Sandwich Panel Machine

An automatic side mold system in a PU sandwich panel machine is a crucial component that ensures precise and consistent panel dimensions during the manufacturing process. This system, often integrated with a double-belt laminating system, controls the width and shape of the panel edges, contributing to the overall quality and uniformity of the finished product.

Functionality and Importance:

Edge Control:

The primary function of the automatic side mold system is to precisely define the edges of the sandwich panels as they are being formed. This is particularly important for achieving straight, uniform edges that meet specific design requirements.

Material Containment:

The system helps to confine the foam core material within the desired dimensions, preventing overflow or uneven distribution. This ensures a consistent foam density and thickness across the panel.

Integration with Double-Belt System:

The side mold system often works in conjunction with a double-belt conveyor system. The double-belt system provides a stable platform for the panel as it is being formed and cured, while the side molds define the edges.

Automation and Efficiency:

By automating the side mold adjustment and movement, the system increases production efficiency and reduces the need for manual intervention. This leads to faster production cycles and reduced labor costs.

Quality Enhancement:

Consistent panel dimensions, straight edges, and proper material containment are essential for achieving high-quality sandwich panels. The automatic side mold system plays a vital role in meeting these quality standards.

Key Components and Mechanisms:

Side Mold Mechanisms:

The system typically incorporates adjustable side molds that can be moved and positioned to accommodate different panel widths and shapes. These molds are often made of durable materials to withstand the pressures and temperatures involved in the PU foaming process.

Tension Control:

A tension control device within the tape mechanism ensures that the overlay material (such as metal sheets or other facings) is evenly applied to the foam core, contributing to a smooth and uniform surface finish.

Cutting and Trimming:

Some systems may include features for trimming or cutting the edges of the panels after the foam has cured. This can be done by the side mold system itself or by a separate cutting unit integrated into the production line.

Control System:

The entire side mold system is typically controlled by a PLC (Programmable Logic Controller) or other automated system, allowing for precise adjustments and monitoring of the process.
